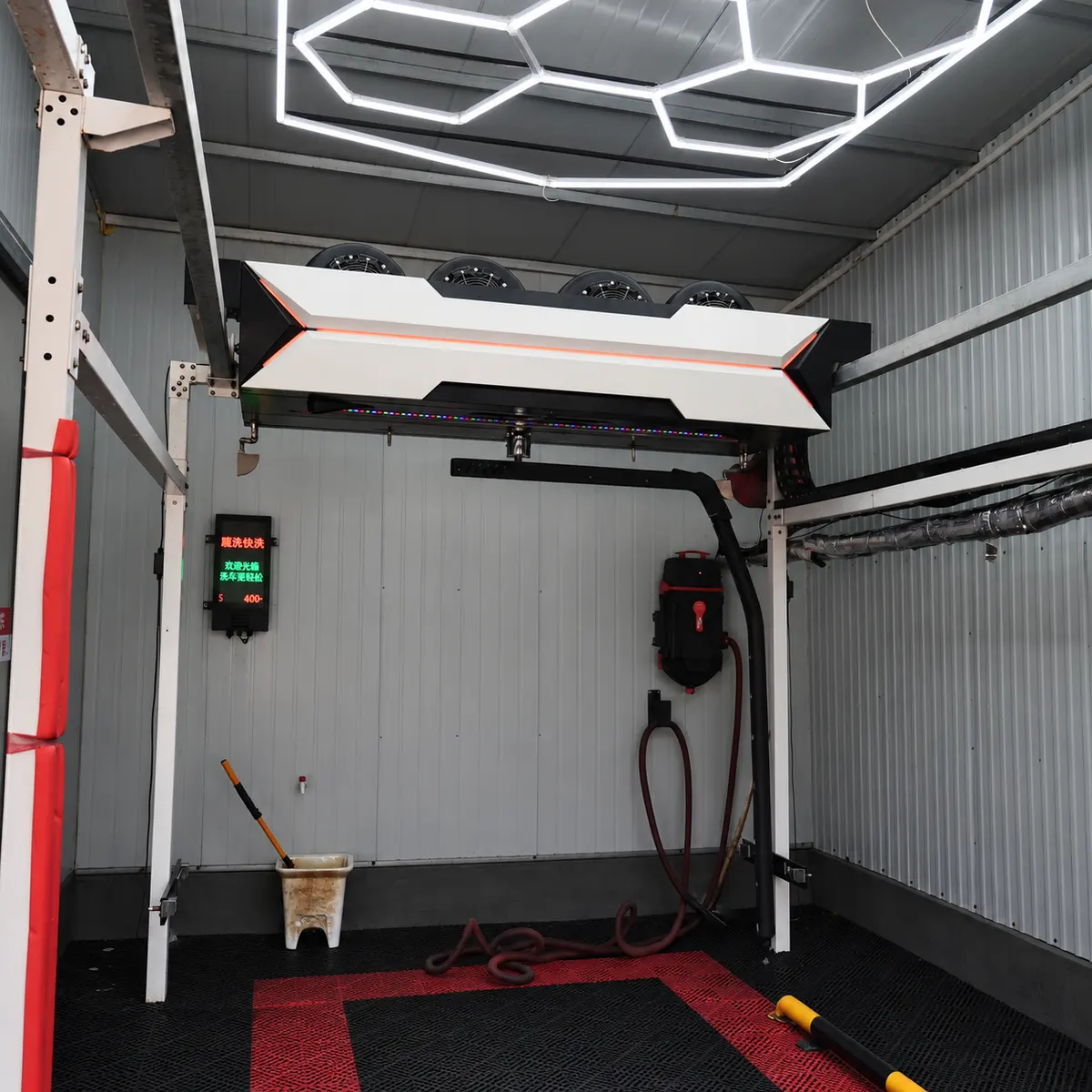

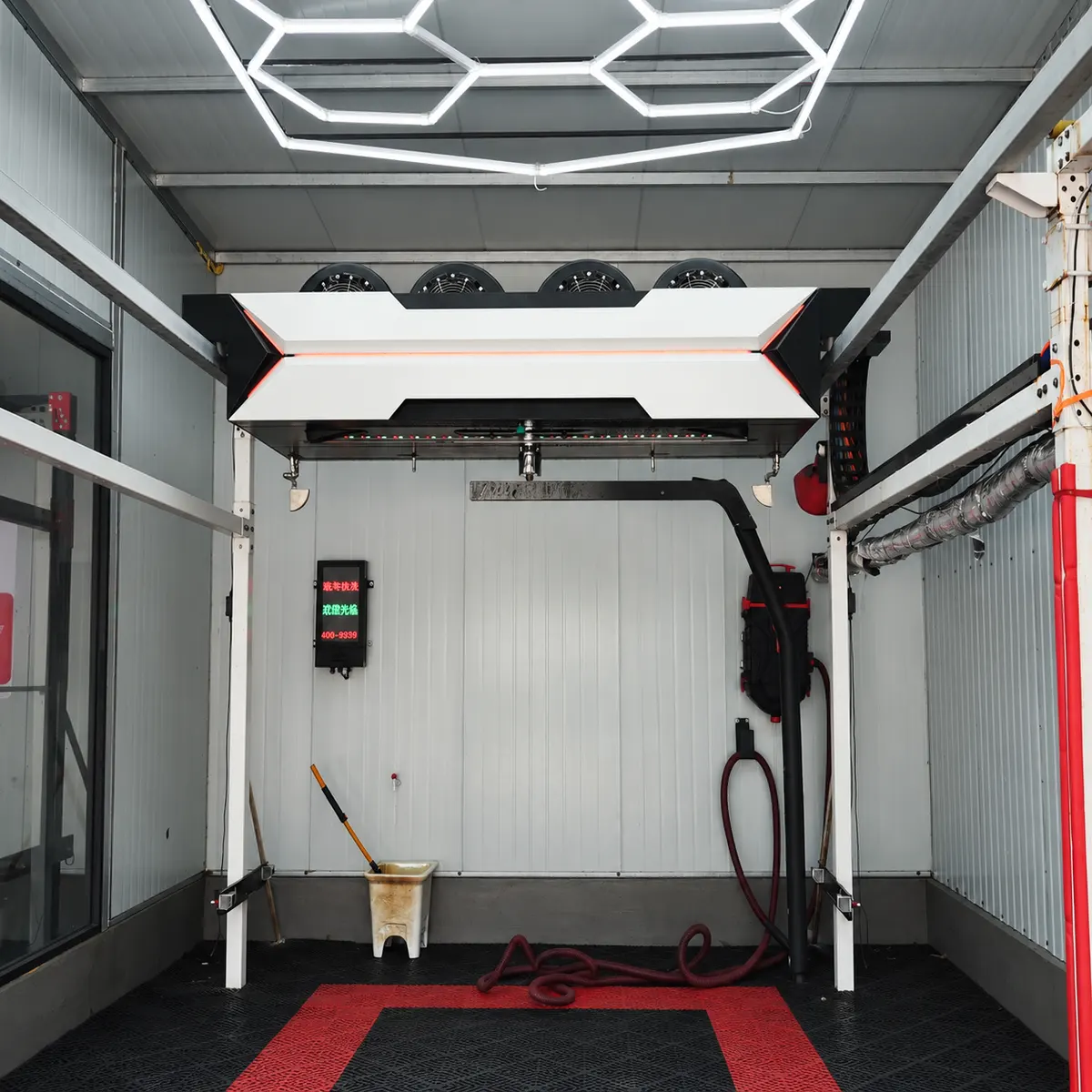

Four axial fans form the upper drying module, providing organized airflow across the wash area.

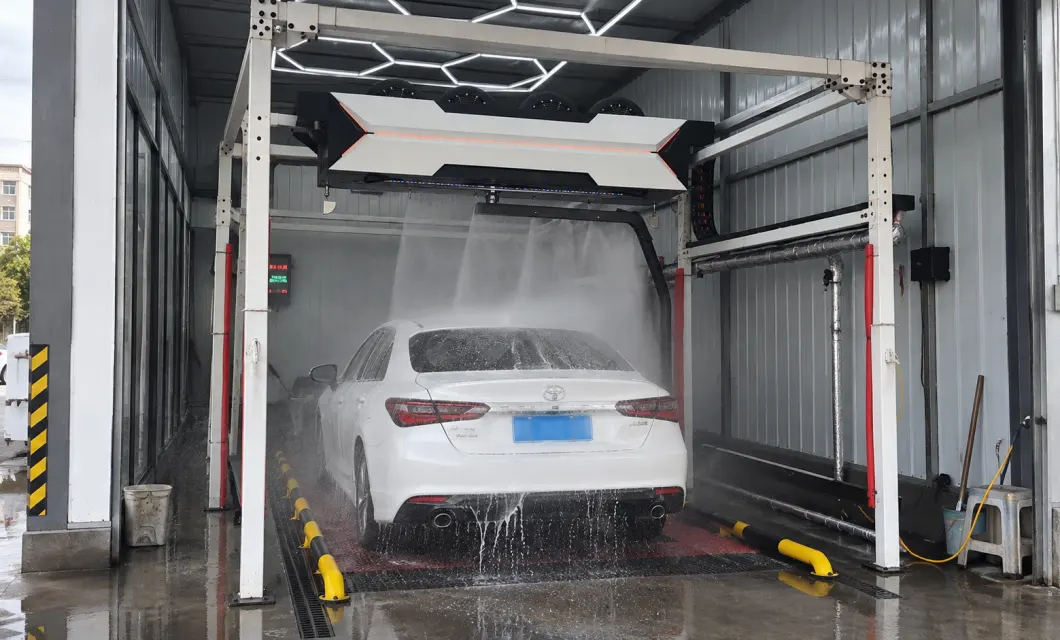

Rocker-arm spray covers roof and rear body areas during the automated wash cycle.Automated Cleaning for Commercial Vehicle Wash Bays
Integrated Car Washing for Dedicated Commercial Wash Sites
Designed for dedicated car wash bays, automotive service sites and commercial vehicle-cleaning facilities, this gantry system performs high-pressure surround washing, foam application, water-repellent coating and air drying along a guided vehicle lane. Smart operation and detection functions support routine automated washing.
- Foam Wash Bay
- Front-Entry Automatic Wash
- Surround High-Pressure Rinse
- Overhead Spray Cleaning

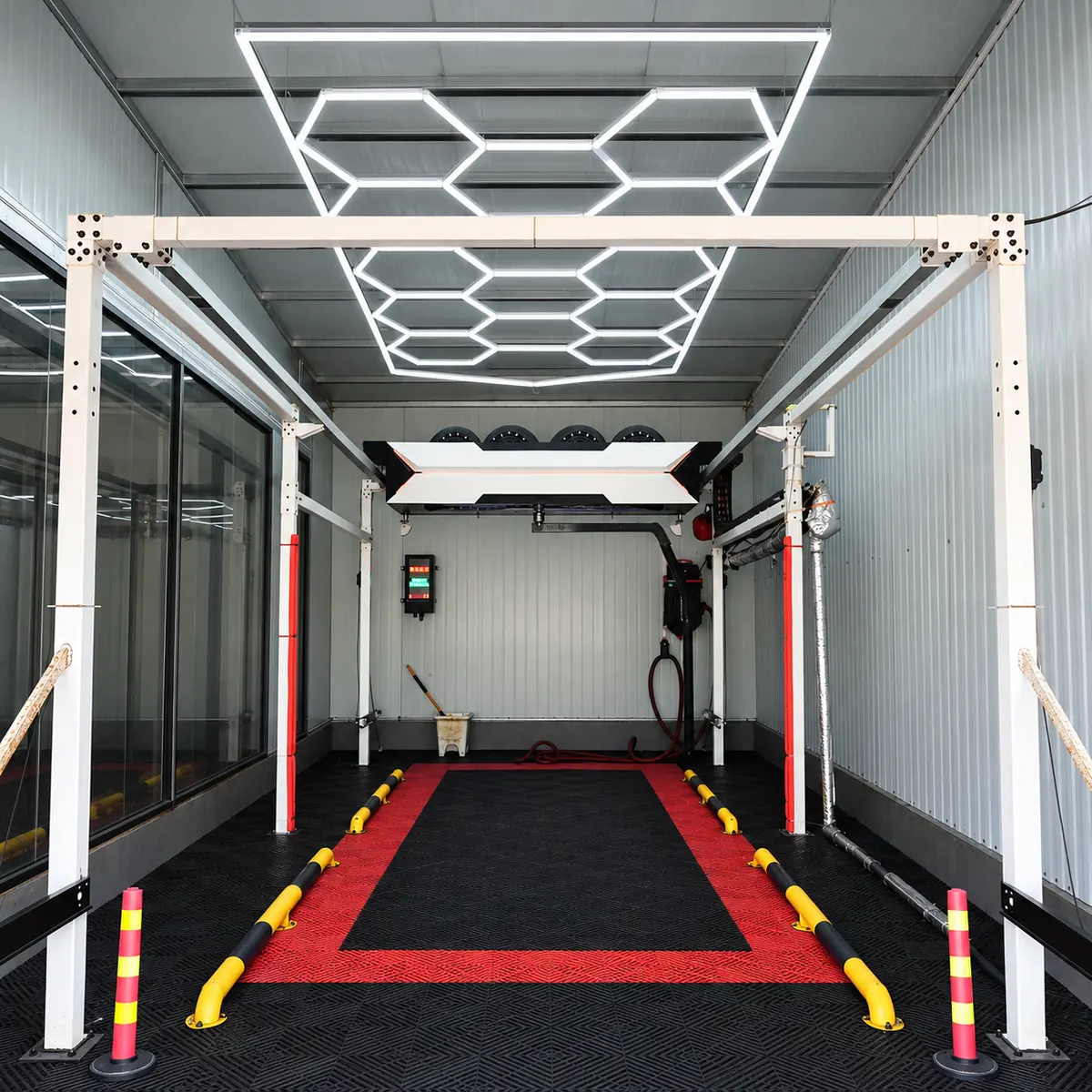

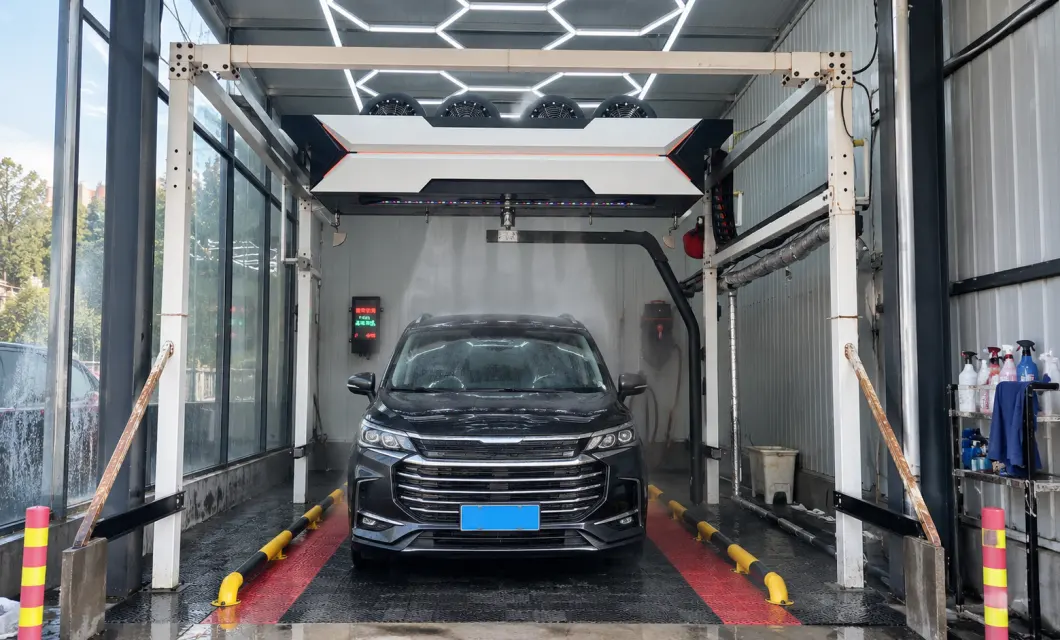

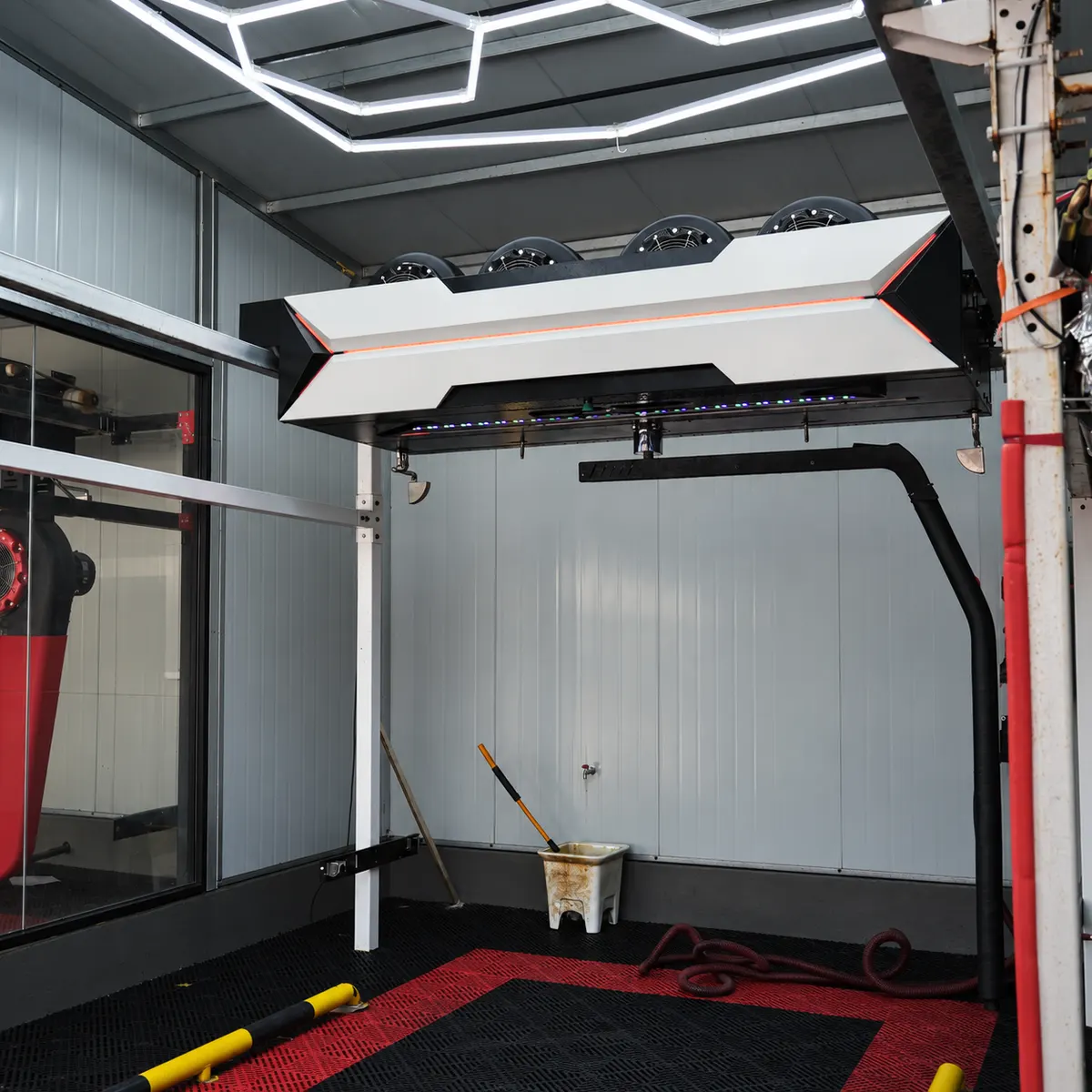

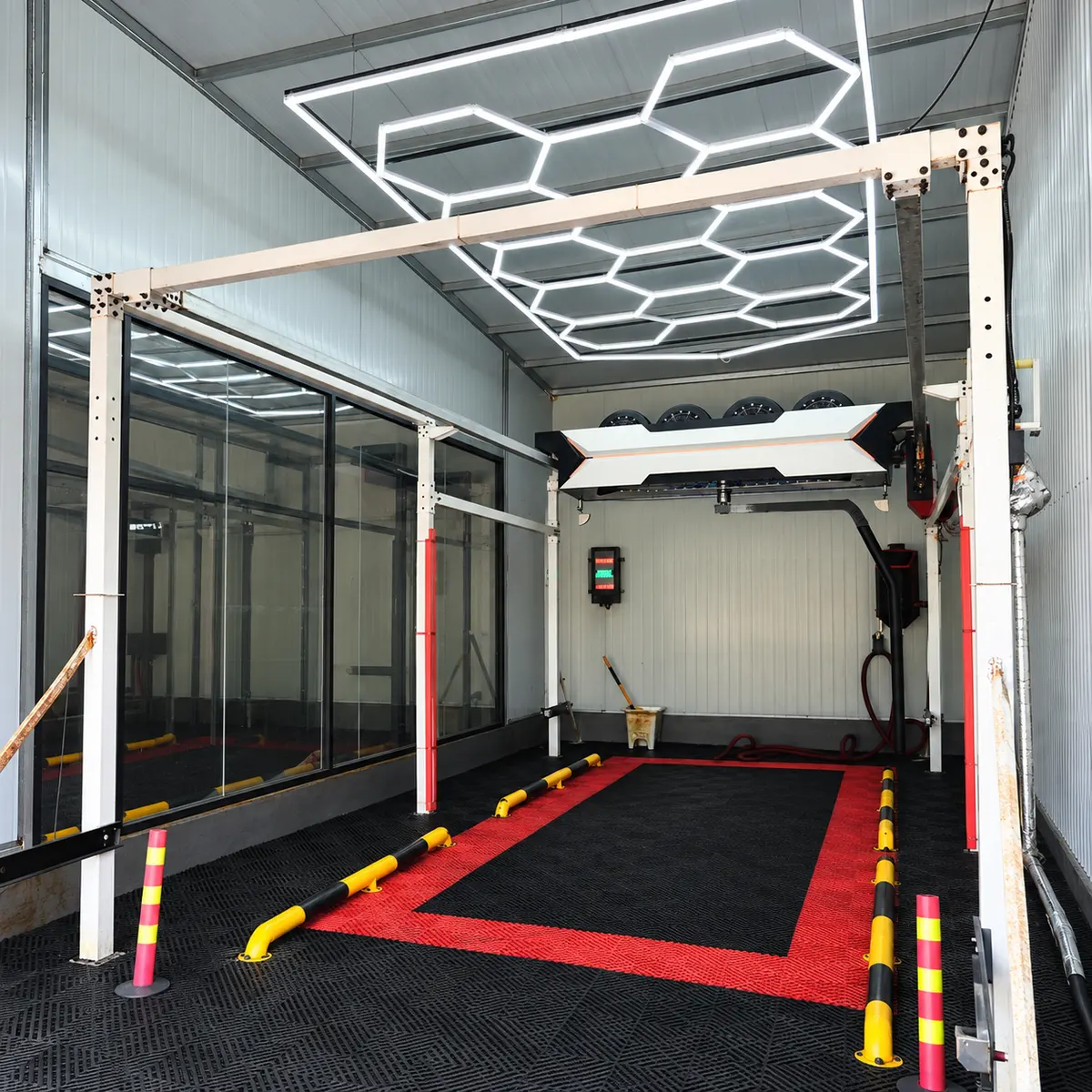

Gantry installation supports automated cleaning along a dedicated vehicle lane.

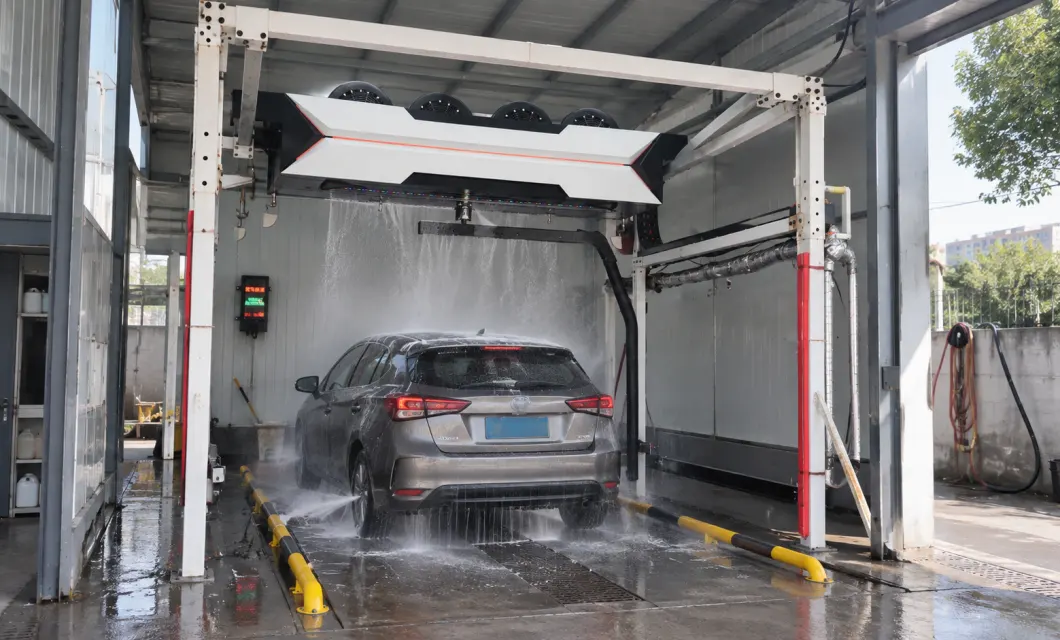

High-pressure water reaches side, rear and lower exterior areas during washing.Rocker-arm spray covers roof and rear body areas during the automated wash cycle.

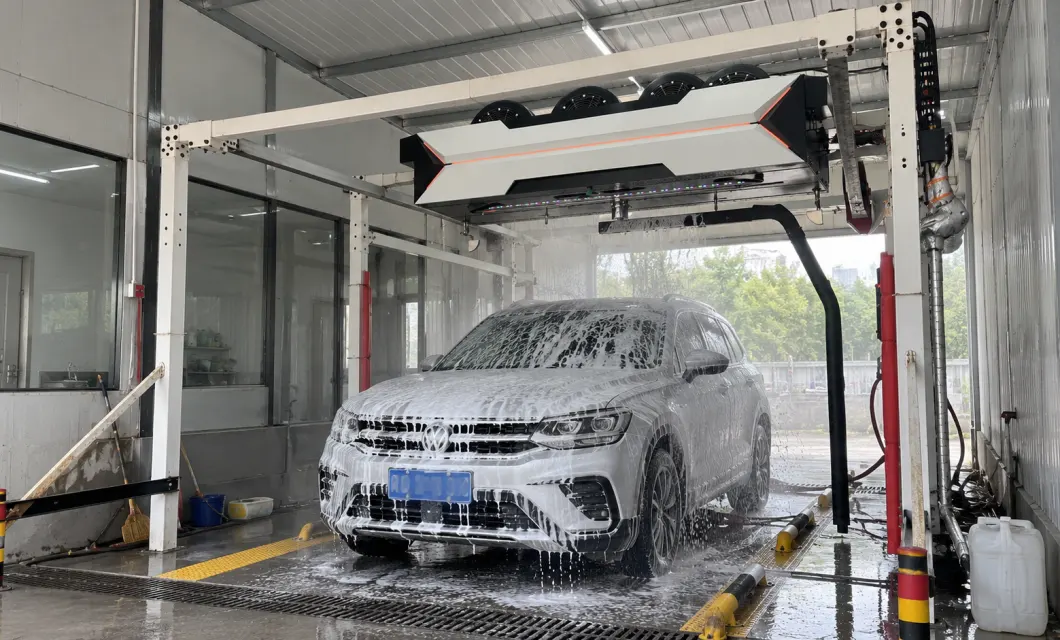

Spray-type foam covers the vehicle exterior for a structured cleaning stage.Gantry installation supports automated cleaning along a dedicated vehicle lane.High-pressure water reaches side, rear and lower exterior areas during washing.Product Advantages
Strong air dry clears beads—fewer water spots, drive-off sooner with less towel work.
Specifications & Structural Decomposition

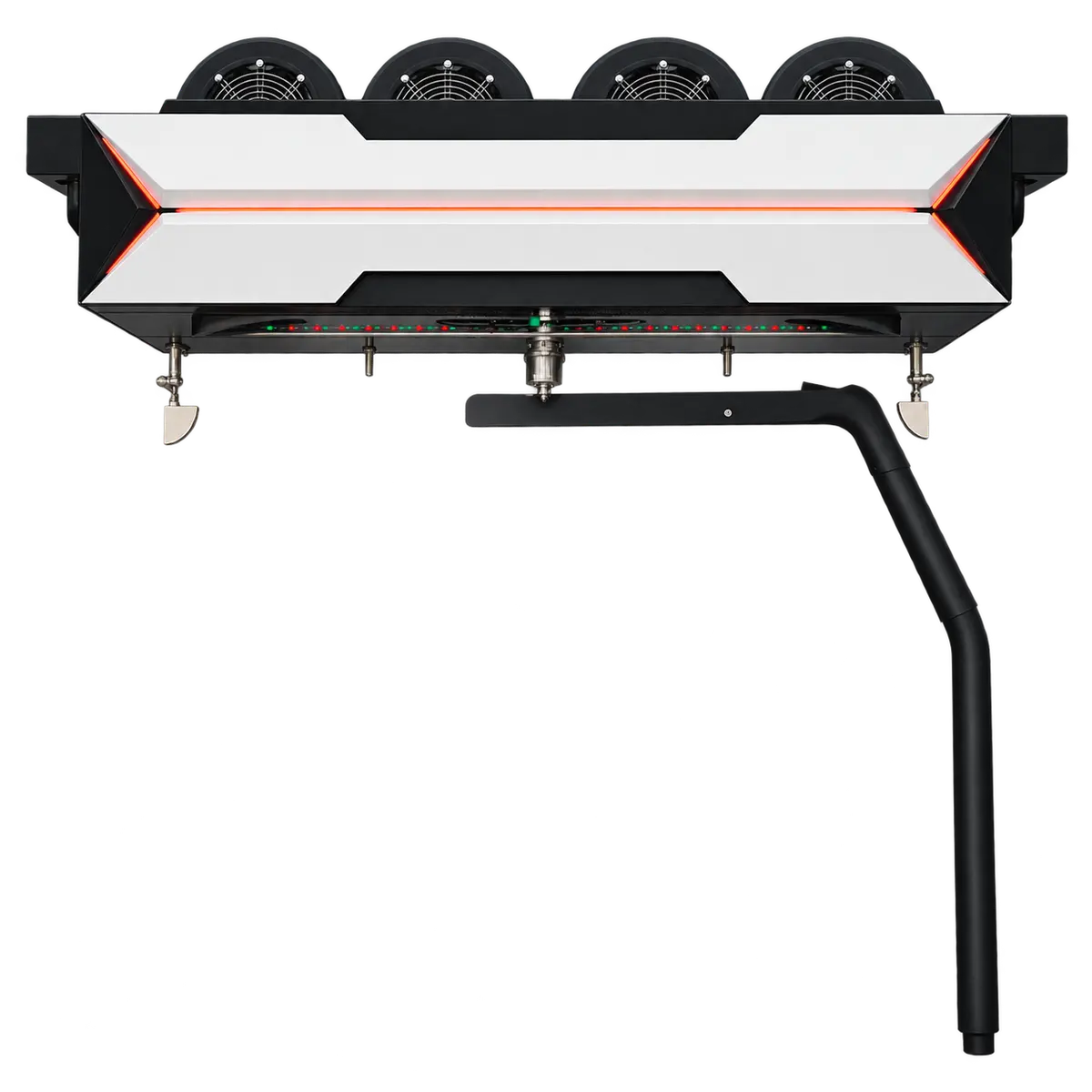

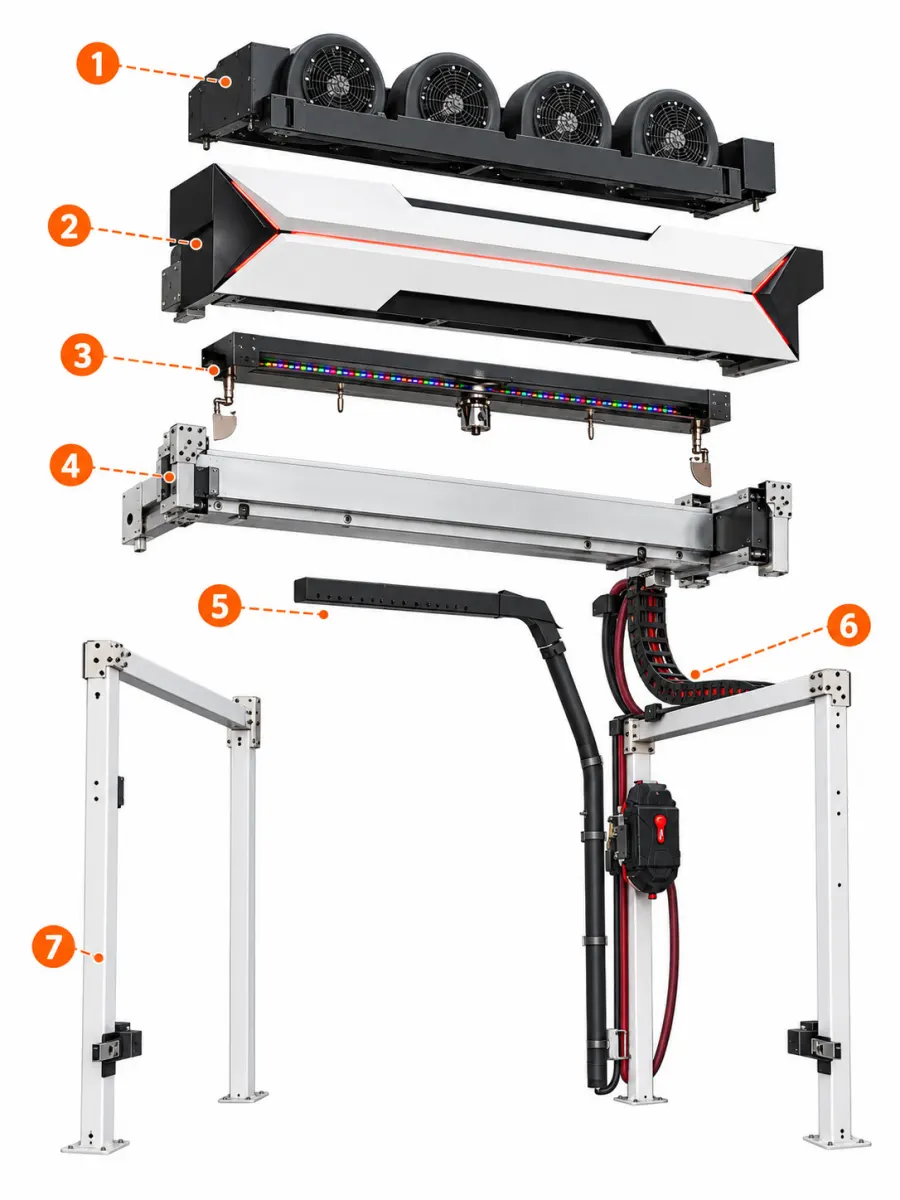

Product Structure Diagram
- Top Fan Drying Assembly
- Decorative Front Housing
Angular white and black outer panels protect the upper structure and form the machine's main fascia.
- Spray and LED Bar Assembly
Integrated lighting and spray fittings are arranged along the lower bar for guided wash operation
- Main Gantry Crossbeam
The rigid crossbeam supports moving hardware and links upper modules to the side frame structure.
- High Pressure Spray Arm
The black articulated arm carries a perforated spray section for directed high pressure washing.
- Cable Chain and Hose System
A guided cable chain routes hoses and wiring neatly between moving sections and the support frame.
- Support Column Frame
Vertical posts and mounting feet form the main support structure and stabilize the gantry system.
General information
- Model
- L9Max
- Optional appearance
- Multiple colors available
- Fan quantity
- 5.5kw*6
- Chassis wheel hub cleaning
- support
- Rocker arm cleaning method
- High pressure 360° surround flushing
- Foam function
- spray-type
- No wiping pre wash function
- support
General instructions
Simplified explanationProduct Attachments or Core Configurations
Product Video
Single-Arm Smart Wash
Single-arm path spray saves space—360° HP surround rinse, ideal for compact quick-wash sites.
Single-Arm Smart Wash
00:20Single-arm path spray saves space—360° HP surround rinse, ideal for compact quick-wash sites.
Full Auto Wash Cycle
01:35Foam, rinse, wax and dry in one stop—touchless shine, faster bay turns.
Crate Pack & Container Ship
00:22Heavy wood-crate packing with forklift load into container—better protection and steadier delivery.
Real Factory Footage
Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.
0:00 / 0:00
Product Review
Product Inspection
We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
0:00 / 0:00
Core Component Details
Certifications
Qualification Documents
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
info@eascoutia.com400 158 5899Frequently Asked Questions (FAQ)
What vehicle cleaning functions does this car wash machine support?
It supports 360° high-pressure surround flushing, spray-type foam, water-repellent coating, air drying and reinforced front and rear washing.
Does the system support remote and smart operation?
Yes. The provided specifications list Smart Start, remote control operation, mobile Internet, automatic standby, one-click start/reset, remote maintenance and an operating permission system.
What detection and protection functions are included?
Supported functions include physical collision prevention, intelligent electronic collision protection, security alarms, earth leakage protection, ultrasonic testing, intelligent induction and 3D detection.
What are the machine and installation dimensions?
The machine size is 2600 × 950 × 500 mm. The specified installation size is 7000 × 4500 × 3100 mm, with an equipment room area above 8 m².
Does the machine support guidance, voice and multilingual functions?
Yes. The specifications list voice broadcasting, multilingual customization and an LED guidance light box with customizable language. The head panel also supports variable RGB lighting.
